CSS动画-实现元素依次淡出

Jin原创2021年6月20日
大约 4 分钟约 1203 字

背景

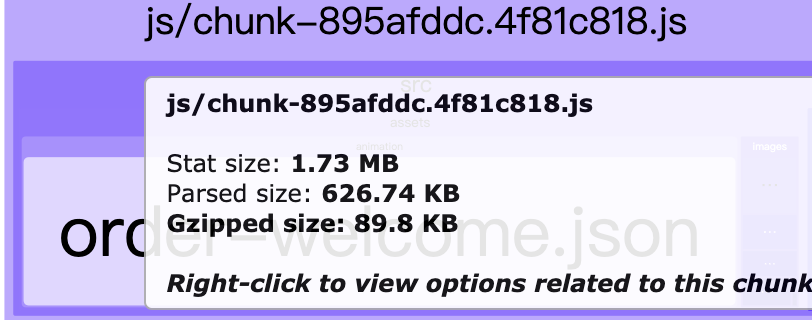

在查看webpack打包出来的bundle时,发现一个叫Lottie的js占用的体积还挺大,并且有好几个诡异的json文件,于是想着能不能优化,然后去项目里搜,发现好几个弹窗里的动画实现用到了这玩意,而且lottie制作的动画一个json文件就很大了,什么炫酷的动画竟然要引入Lottie来解决? image.png 咋一看,这不挺简单的吗? 就淡入加延时的效果,再加上气泡的实现。下面就来实现一波吧。

公司网站动画要求不高,因此不必要上Lottie,用纯css就好,选啥,大伙得视自己公司项目而定。

demo:https://codepen.io/jlin2/pen/mdWGrvPopen in new window

css动画animation

MDN:https://developer.mozilla.org/en-US/docs/Web/CSS/animationopen in new window

animation: 3s ease-in 1s infinite reverse both running slidein;
animation是以下动画属性的简写:
属性说明可选值
animation-name指定动画的名称跟@keyframes [name]相同
animation-duration整个动画完成的时间1s 2s 3s ........
animation-timing-function动画以怎样的速度从开始到完成linear:匀速,ease-in:加速,ease-out:减速 cubic-bezier函数:自定义速度模式
animation-delay动画开始的延时1s 2s 3s ........
animation-iteration-count动画重复的次数infinite:无限播放,1,2,3....
animation-direction指定动画播放的方向normal、alternate、reverse、alternate-reverse
animation-fill-mode指定动画结束播放时的状态forwards、backwards、both......
animation-play-state指定动画在播放过程中的状态,比如暂停、播放paused:暂停,running:运行

淡入实现fadeInUp

定义一个动画帧@keyframes fadeInUp,运用到相关页面元素上就可。

.fadeInUp {
  animation-name: fadeInUp;
  animation-duration: 1s;
  animation-iteration-count:1;
}
@keyframes fadeInUp {
  from {
    opacity: 0;
    transform: translate3d(0, 100%, 0);
  }
  to {
    opacity: 1;
    transform: translate3d(0, 0, 0);
  }
}

延时delay

要求页面不同元素执行动画的时序不同,因此用animation-delay进行控制,可具体到毫秒 ,animation-fill-mode设置为backwards让动画回到第一帧状态。

.delay1000 {
  animation-delay: 1s;
  animation-fill-mode: backwards;
}
.delay2000 {
  animation-delay: 2s;
  animation-fill-mode: backwards;
}
.delay3000 {
  animation-delay: 3s;
  animation-fill-mode: backwards;
}
.delay4000 {
  animation-delay: 4s;
  animation-fill-mode: backwards;
}

聊天气泡的实现


实现三角小箭头

众所周知,实现三角形可以用border的transparent来实现。这里因为要显示边框的颜色,因此得实现两个小三角形,一个三角形用边框颜色填充,另外一个三角形跟矩形气泡同色,再偏移与边框宽度相等的px。

.bubble{
  position: relative;
  padding: 10px 20px;
  border: 1px solid #c83c23;
  border-radius: 12px;
  margin-bottom: 24px;
  background: #fff;
}
.bubble::before{
  content: '';
  position: absolute;
  top: 20%;
}
.bubble::after{
  content: '';
  position: absolute;
  top: 20%;
}
.bubble-left::before{
  left: -12px;
  border-top: 8px solid transparent;
  border-bottom: 8px solid transparent;
  border-right:12px solid #c83c23;
}
.bubble-left::after{
  left: -10px;
  border-top: 8px solid transparent;
  border-bottom: 8px solid transparent;
  border-right:12px solid #fff;
}
.bubble-right::before{
  right: -12px;
  border-top: 8px solid transparent;
  border-bottom: 8px solid transparent;
  border-left:12px solid #c83c23;
}
.bubble-right::after{
  right: -10px;
  border-top: 8px solid transparent;
  border-bottom: 8px solid transparent;
  border-left:12px solid #fff;
}

X偏移的弹出

更改keyframes中 to的X偏移量

@keyframes fadeInUp {
  from {
    opacity: 0;
    transform: translate3d(0, 100%, 0);
  }
  to {
    opacity: 1;
    transform: translate3d(150, 0, 0);
  }
}
.offet-left {
  transform: translateX(-150px)
}
.offet-right {
  transform: translateX(150px)
}

背景图片也得淡入?

这时要用load事件监听图片加载完之后,再显示气泡的动画就行。

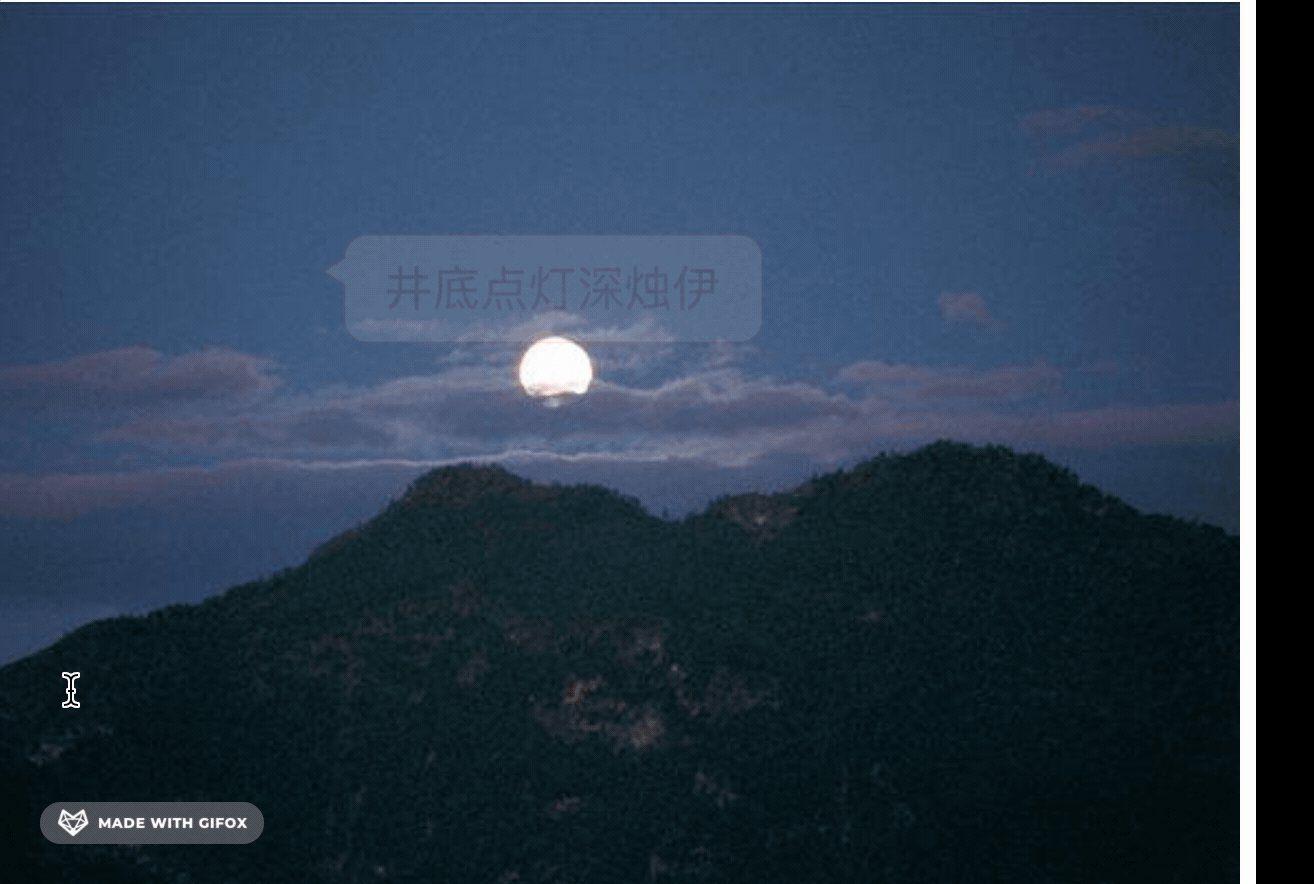

最终效果:

2021-06-10 16.51.13.gif

总结:

demo:https://codepen.io/jlin2/pen/mdWGrvPopen in new window

开发中基本很少要写动画效果,自己趁此机会熟悉了animation属性,其实有些同事一看到动画效果的交互都喜欢直接叫UI设计师用Lottie制作好,前端拿来直接用,省事;但是觉得还是要考虑具体的项目,像本司都是管理后台,基本都没动画,更别说酷炫的动画了。

用css写,把Lottie的json文件删除了足足6MB,感觉轻快了许多。

另外Lottie真的挺好用的,在UI大佬要非常炫酷动画时候,简直前端是不加班利器,附上地址:https://airbnb.io/lottie/#/open in new window

好用的动画实现库:https://animate.style/
